3A3D Chassis replacement for FLY 917K Slot Car

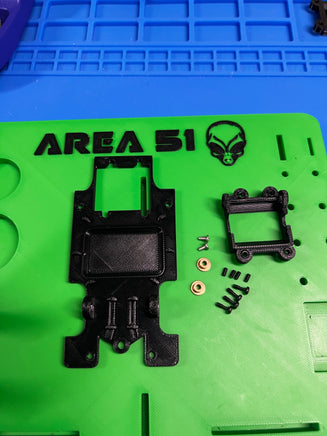

Included with the chassis
- 4x - M2 5mm grub screws (oval point)
- 4x - M2 Nylock body mount inserts
- 4x M2 6MM Machine Screws
- 2x SCC 4mm motor mount screws
- 2x - JK Products #5574 3/32 single flange bushings
- 4x Wheel Inserts
Suggested Parts to complete a running chassis
2 pair BMSlot Works 15x8mm Insert Wheels (2 pairs)
1 Pair 54mm BMSlot works Axles
1x - Predator S-Can motor
** IMPORTANT ** - Clearance between the "back" of the motor and the rear axle is very minimal. If you plan to use a Predator motor, you shouldn't have a problem. Other brands (e.g. Slot.It, NSR, Piranha) have a slightly larger motor can configuration. If you plan to use one of these brands, the axle may interfere or bind with the can. A potential solutions is to use a Slot.It center turned axle that has a reduced diameter along the center section.
Sidewinder gears (18mm) of your choice
6.5mm pinions of your choice
Tire Suggestion
4x Paul Gauge PGT-19105LM Tires
If you want a Lower Profile Tire for the front only 2X Paul Gauge PGT-18095LM
Support
Please visit the 3A3D Kit Support Page for useful information about assembling and finishing your kit.
